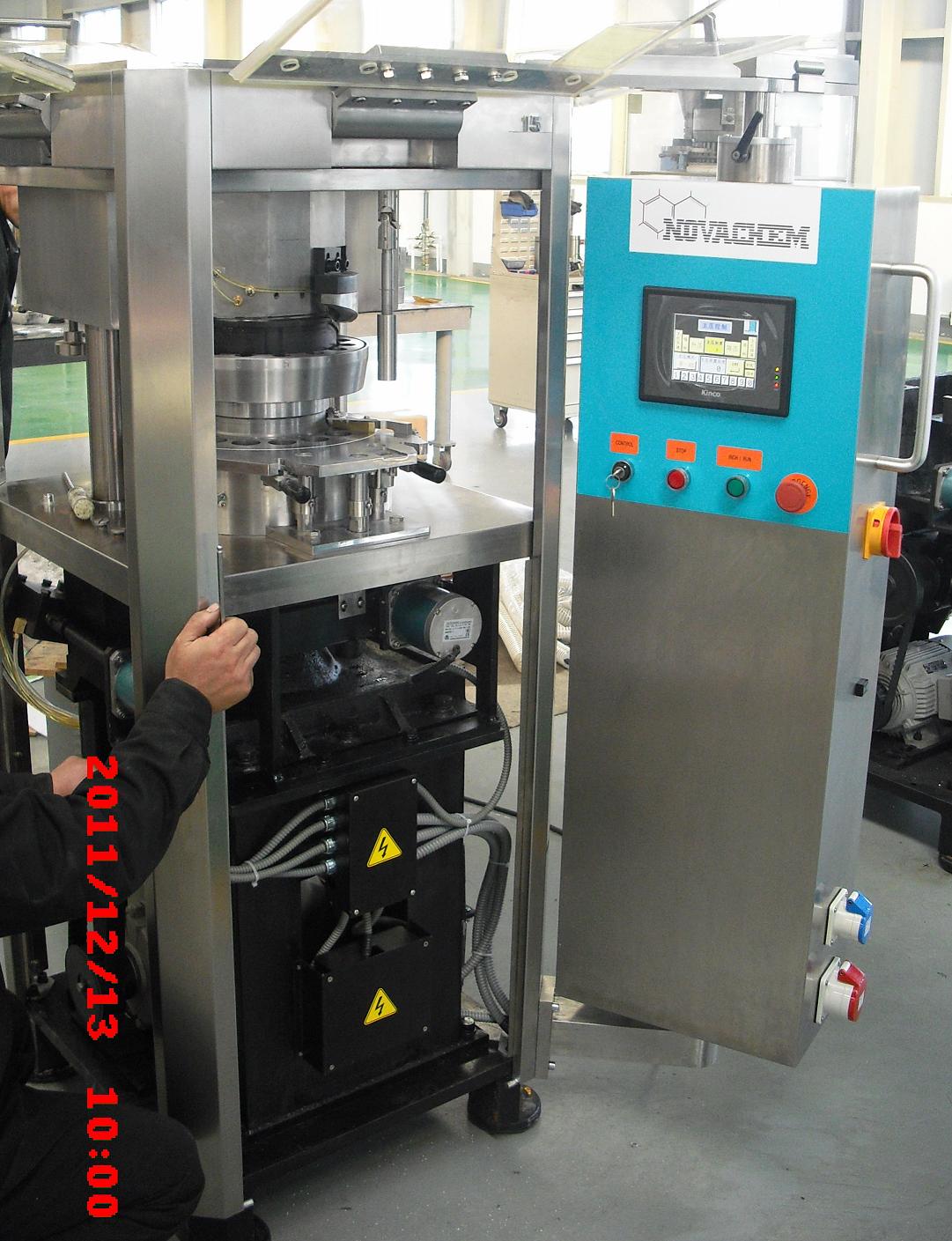

Rotary Tablet Press Machine

SKU:ZPT
Description:

* Model Number:ZPT-15/17/20/25
* Material: Stainless steel
* Controller: PLC touch screen
* Capacity: 70000-118000tablets/Hr.
* Certificate: CE

Technical parameters

Model	ZPT15	ZPT17	ZPT20	ZPT25
Number of dies(punch)	15	17	20	25
Max diameter of tablet (mm)	25	16	13	11
Max diameter of abnormal tablet(mm)	25	18	16	13
Maximum pre-pressure (KN)	12
Maximum main pressure (KN)	100	80	80	80
Maximum filling depth (mm)	20	16	16	16
Max output (t/h)	70000	80000	95000	118000
Idle load noise dB(A)

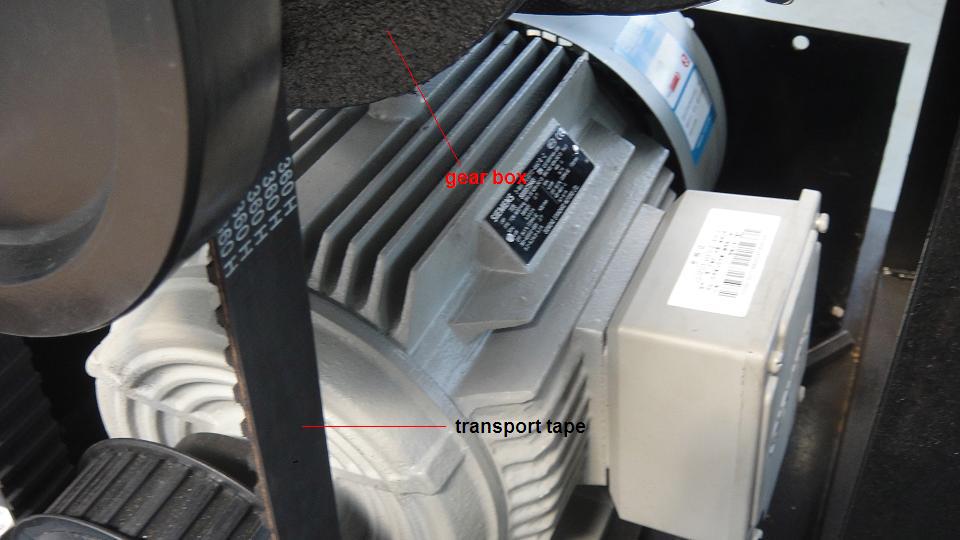

Power of main motor (KW)	110V,60hz/220V,60hz/380V,50HZ 5.5KW
Size of machine (mm)	660×690×1620
Net weight of machine (kg)	675

Adopting stainless steel contacted with product to avoid any possible pollution;

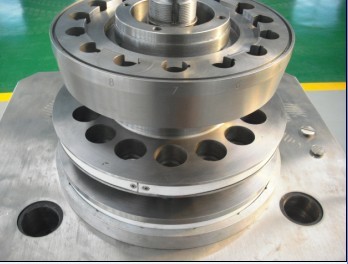

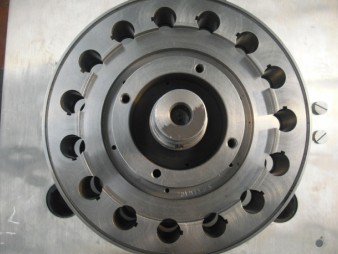

The hole of the punch & die is with special anti-leakage and anti-dust device.

Convenient structure for disassemble and assemble, to make sure easy maintenance.

Isolated window design.

Reliable safe sealing and dust-proof design.

BRIFE INTRODUCTION

1. Stainless steel main machine housing.

2. The parts contact with the powder is made of stainless steel.

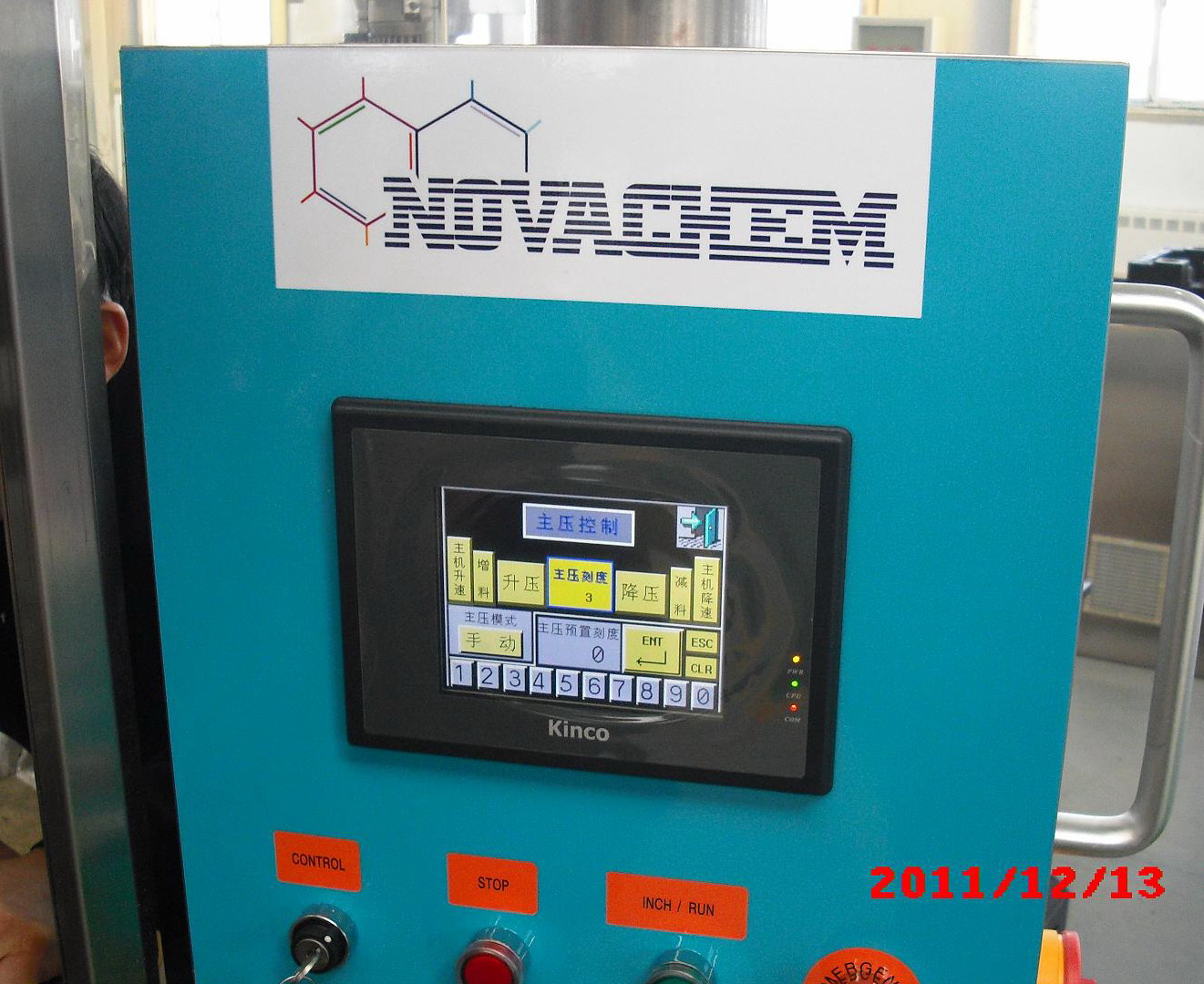

3. PLC touch screen controller

4. There are oil-leak proofs and dust proof devices installed in die holes.

5. No-handwheel operating system

6. Sensor system – alarming first and then stopping machine when any one is happened as following situation.

7. Electrical control system.

A. Rapidity display.

B. Alarm display.

C. Main motor state display
